产品展示

输入电压Input Voltage:220V，50/60Hz

整机功率Power:1.5KW

外型尺寸Dimension:700x485 x1100 (mm)

料桶尺寸Bucketsize:中420x380(mm)

料桶容积Tank Capacity Range:3-50L

转速Speed:0-50转/分

整机净重Netweight:198KG

特点Characteristics:

1、操作简单方便。Simple and convenient operation.

2、低速、间歇式贴桶边、桶底搅拌;独特的搅拌浆设计，油墨可在搅拌过程中翻动、剪切，桶底下的油墨能翻上来搅拌，能在十分钟内将油墨彻底搅拌均匀;搅拌后的油墨不升温。

The machine with an unique designed impeller,mixing at a low speed and at inervalsscrape to the inner wall of the tank.So,printing inks would be homogenetic and withoutheating-up within 10 minutes after being rolled over and sheared down during mixing.3、方便更换料(不锈钢)。 Inks tank replacement is very convenient.(Stainless steel drum).4、速度可变频调速。Variable frequency mixing speed adjustment is available5、搅拌奖:L形奖式搅拌，整体成形，无一个螺丝孔，清洁容易。Stirrer:L-shaped stirrer,integral shape, no screw hole, easy to clean.

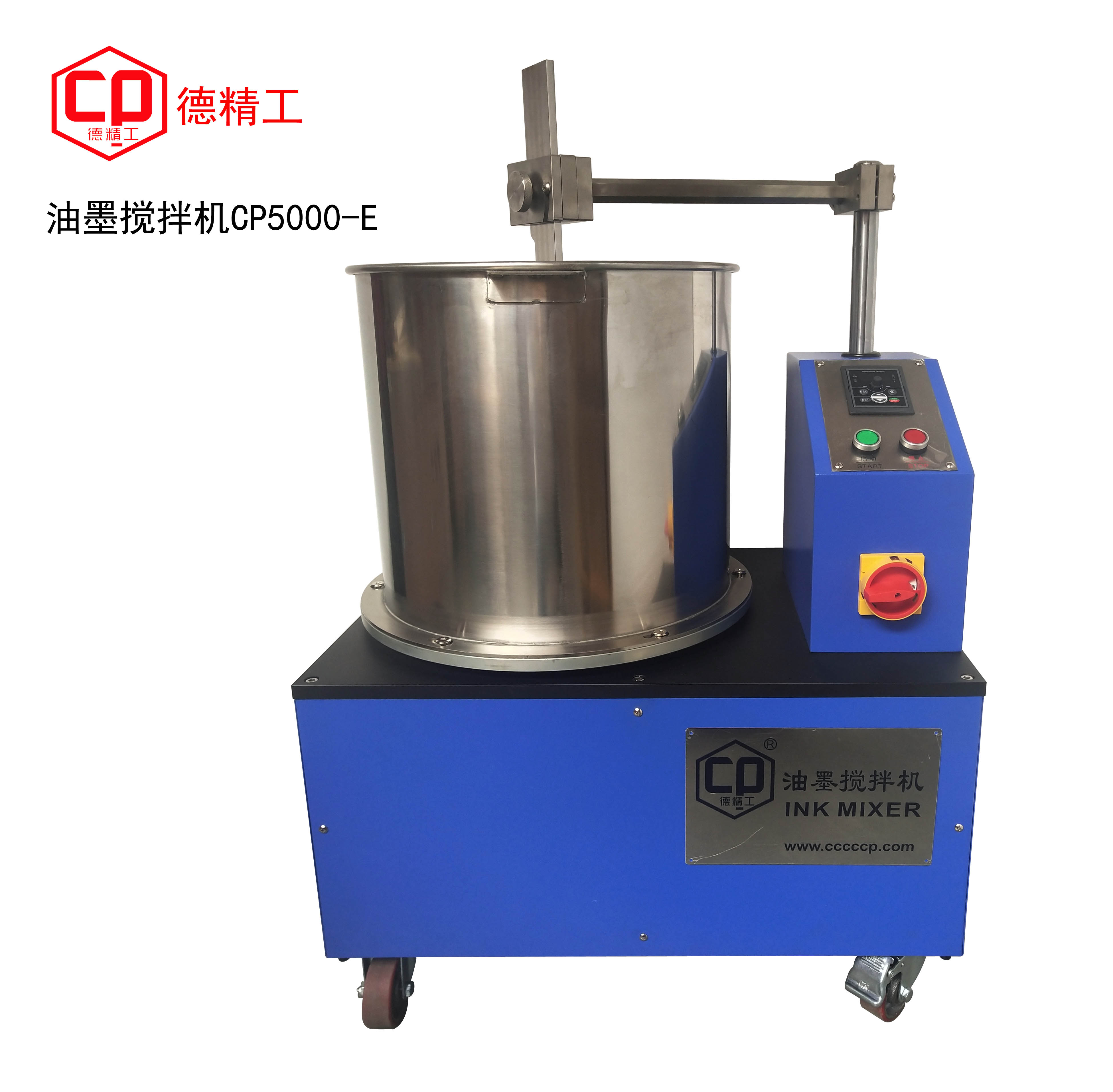

油尽搅拌机INK MIXER

6、传动方式:直接传动，减少动力损耗。Transmission: direct transmission, reduce power loss.

7、机底四个自锁滑动轮。Four self-locking sliding wheels.
